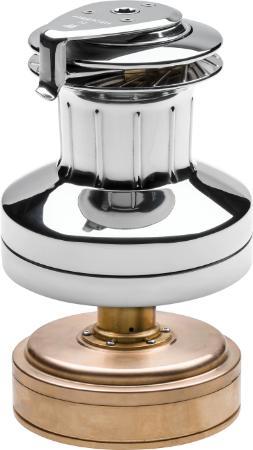

Andersen Electric Full Stainless Steel #72 Compact Variable Speed 12V Below Deck Winch

Item #

RA2072014100

$11,781.90 $13,091.00 You Save 10% ($1,309.10)

Usually ships within 1-3 days

Product Description

Andersen Electric Full Stainless Steel #72 Compact Variable Speed 12V Below Deck Winch

Features:

Compact in design integrating motor, gears and power controls into one unit

Impressive line speed and first rate maximum load

Easy to install and compatible with the ANDERSEN Modular Power System™.

Available in two versions: Above and Below deck

Winch mounted directly on the motor

Motor built without carbon brushes eliminates wear and tear.

30-50% less power consumption compared to conventional electric motors

Available in Full Stainless or Non Stainless versions

Specifications:

Drum Ø D - 5 1/2 in. (140 mm)

Base Ø B - 11 in. (280 mm)

Height H - 11 9/64 in. (283 mm)

Line Entry L - 5 1/8 in. (130 mm)

Line Size - 3/8 - 11/16 in. (10 - 18 mm)

Weight - 99.2 lb. (45 kg)

Max Deck Thickness K - 2 1/16 in. (52 mm)

Motor Depth J - 7 in. (178 mm)

Motor Ø S - 9 7/8 in. (250 mm)
