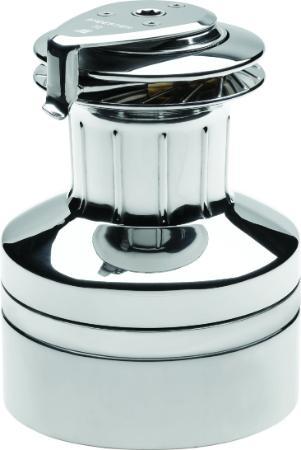

Andersen Electric Full Stainless Steel #72 Compact Variable Speed 24V Above Deck Winch

Item #

RA2072015200

Product Description

Andersen Electric Full Stainless Steel #72 Compact Variable Speed 24V Above Deck Winch

Features:

  • Highly efficient winch motor

  • Impressive line speed and first rate maximum load

  • Easy to install

  • Available in two versions: Above and Below deck

  • Winch mounted directly on the motor for deck

  • Available in Full Stainless or Non Stainless versions

    Specifications:

  • Drum Ø D - 5 1/2 in. (140 mm)

  • Base Ø B - 11 in. (280 mm)

  • Height H - 10 3/4 in. (273 mm)

  • Line Entry L - 8 3/16 in. (208 mm)

  • Line Size - 3/8 - 11/16 in. (10 - 18 mm)

  • Weight - 112.4 lbs. (51 kg)

  • Max Deck Thickness K - 1 3/4 in. (45 mm)

  • Motor Height J - 3 7/16 in. (88 mm)

  • Motor Ø S - 11 1/8 in. (282 mm)

  • Motor Depth U - 1 9/16 - 2 15/16 in. (40 - 75 mm)
