Andersen Electric Full Stainless Steel #62 Compact Variable Speed 24V Below Deck Winch

Item #

RA2062014200

Product Description

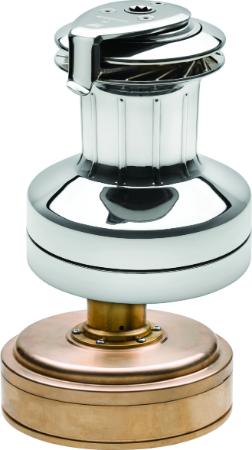

Andersen Electric Full Stainless Steel #62 Compact Variable Speed 24V Below Deck Winch

Features:

  • Compact in design integrating motor, gears and power controls into one unit

  • Impressive line speed and first rate maximum load

  • Easy to install and compatible with the ANDERSEN Modular Power System™.

  • Available in two versions: Above and Below deck

  • Winch mounted directly on the motor

  • Motor built without carbon brushes eliminates wear and tear.

  • 30-50% less power consumption compared to conventional electric motors

  • Available in Full Stainless or Non Stainless versions

    Specifications:

  • Drum Ø D - 4 1/2 in. (115 mm)

  • Base Ø B - 9 1/16 in. (230 mm)

  • Height H - 10 9/32 in. (261 mm)

  • Line Entry L - 4 3/16 in. (121 mm)

  • Line Size - 5/16 - 11/16 in. (8 - 18 mm)

  • Weight - 79.4 lb. (36 kg)

  • Max Deck Thickness K - 1 7/8 in. (48 mm)

  • Motor Depth J - 6 7/8 in. (174 mm)

  • Motor Ø S - 9 7/8 in. (250 mm)
