Andersen Electric Full Stainless Steel #34 Compact Variable Speed 24V Below Deck Winch

Item #

RA2034014200

Usually ships within 1-3 days

Product Description

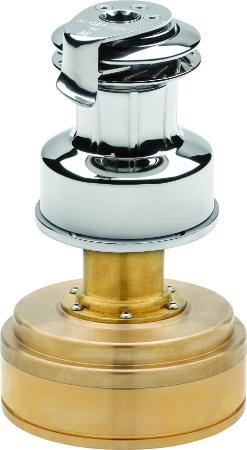

Andersen Electric Full Stainless Steel #34 Compact Variable Speed 24V Below Deck Winch

Features:

  • Compact in design integrating motor, gears and power controls into one unit

  • Impressive line speed and first rate maximum load

  • Easy to install and compatible with the ANDERSEN Modular Power System™.

  • Available in two versions: Above and Below deck

  • Winch mounted directly on the motor

  • Motor built without carbon brushes eliminates wear and tear.

  • 30-50% less power consumption compared to conventional electric motors

  • Available in Full Stainless or Non Stainless versions

    Specifications:

  • Drum Ø D - 2 3/4 in. (70 mm)

  • Base Ø B - 4 15/16 in. (125 mm)

  • Height H - 5 25/32 in. (147 mm)

  • Line Entry L - 2 7/8 in. (73 mm)

  • Line Size - 5/16 - 9/16 in. (8 - 14 mm)

  • Weight - 37.5 lb. (17 kg)

  • Max Deck Thickness K - 2 1/8 in. (54 mm)

  • Motor Depth J - 7 1/16 in. (180 mm)

  • Motor Ø S - 7 11/16 in. (195 mm)
