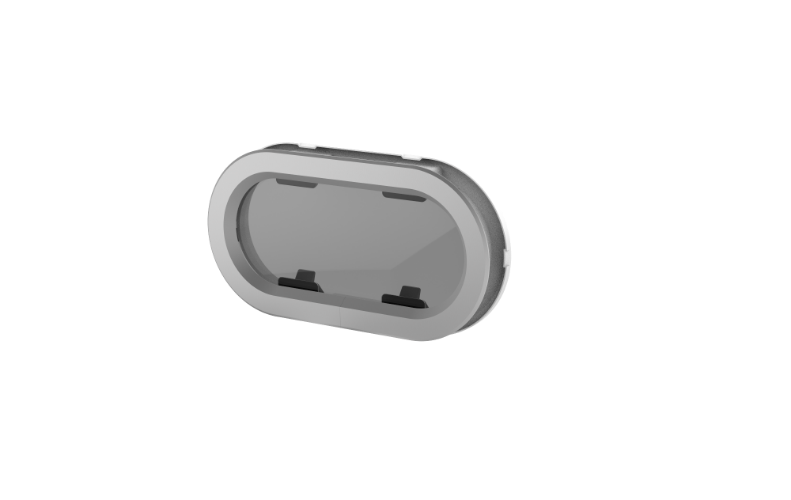

Lewmar Size 1 Round End Standard Portlight

Item #

393180200

$287.88 $456.95 You Save 36% ($169.07)

Usually ships within 1-3 days

Product Description

Lewmar Size 1 Round End Standard Portlight

Specifications

Acrylic color - Smoke Grey

Version - Opening

Weight (lb) - 2.86

Acrylic Window Thickness (in) - 5/16

Dimensions

Overall Width X (in) - 7 1/2

Overall Length Y (in) - 14 7/16

Overall Height Z (in) - 5/32

Overall Radii R (in) - 3 3/4

Cut-Out Width X1 (in) - 6 3/4

Cut-Out Length Y1 (in) - 13 5/8

Cut-Out Radii R1 (in) - 3 3/8

Installation

Fast and easy installation with no complicated cut-out shape.

Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)

Acrylic color is Smoke Grey

All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)

Design category A - Sail & Power, Area 2 CE Approved
