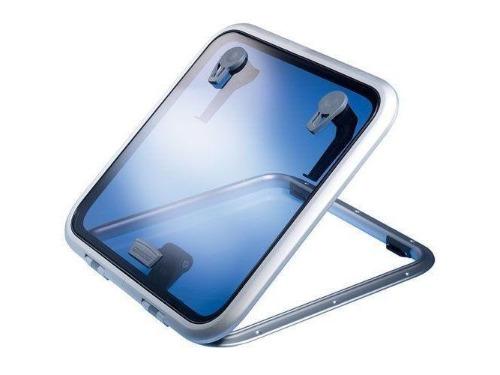

Lewmar Size 10 Low Porfile Self Supporting Hatch

Lewmar Size 10 Low Porfile Self Supporting Hatch

Size 10 Low Profile with Stay is made to order. All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

Support System - Self Supporting

Lower Frame (in) - 9/16

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 4.9

Acrylic Window Thickness (in) - 5/16

Dimensions

Length X (in) - 13

Width Y (in) - 13

Height Z (in) - 1

Radii R (in) - 2 7/8

Cut-Out Length X1 (in) - 10 1/4

Cut-Out Width Y1 (in) - 10 1/4

Cut-Out Radii R1 (in) - 1 11/16
