Harken 150mm Black Magic Single Pulley - Swivel

Item #

IN3262

Product Description

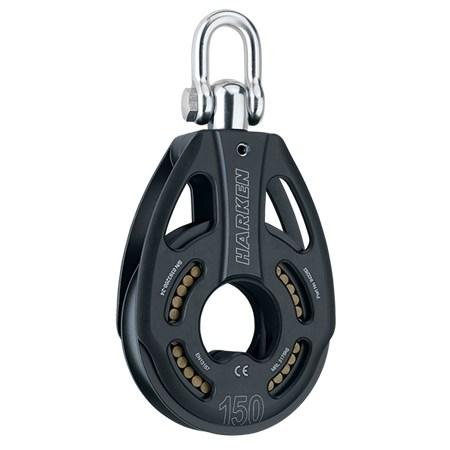

Harken 150mm Black Magic Single Pulley - Swivel

With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified.

Features:

- Pulley shackle locks in two directions or swivels to keep rope from twisting.

- Center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Captive Delrin® ball bearings carry side loads.


Specifications:

  • Sheave Diameter: 5 15/16 in. (150 mm)

  • Length: 12 in. (305 mm)

  • Shackle Pin Diameter: 5/8 in. (16 mm)

  • Width: 6 1/32 in (153 mm)

  • Weight: 4.05 lb. (1840 g)

  • Maximum Line Ø: 1 in. (25 mm)

  • Maximum Rated Load : 6,969 lb (31 kN)

  • Downloads:

    Click here for Product Manual

    Click here for Product Data Sheet

    CE certified to EN13157 for hand-operated lifting equipment.
