Harken Industrial 76mm Stainless Steel Diamond Standard Padeye

Item #

IN688

Product Description

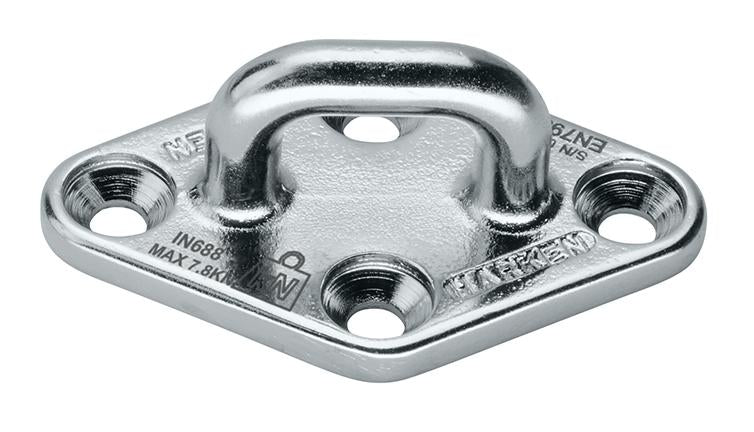

Harken Industrial 76mm Stainless Steel Diamond Standard Padeye

The IN688 316 stainless steel diamond anchorage point is designed to be permanently installed on a structure so that an anchor device, or personal protective equipment can be attached to it, facilitating safe working at height. It is large enough to allow free movement of attachments and will accommodate carabiners.

Specifications:

  • A (mm) 79 mm

  • A (in) 3 1/8 in

  • B (mm) 51 mm

  • B (in) 2 in

  • Maximum rated load (kN) 7.8 kN

  • Breaking load (kN) 31 kN

  • Fasteners (mm) 6 FH mm

  • Fasteners (in) 1/4 FH in
  •

    Downloads:

    Click here for Padeye Data Sheet
