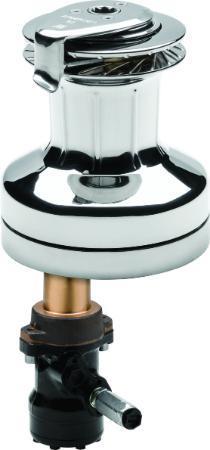

Andersen #52 Single Speed Full Stainless Self-Tailing Hydraulic WinchSmooth and reliable delivery of power throughout your boat
2-speed hydraulic winches also available when using winch model 46ST and above
Use in combination with the Modular Power System to obtain all the speed you require
Drum Ř D - 3 15/16 in. (100 mm)
Base Ř B - 7 7/8 in. (200 mm)
Height H - 8 21/32 in. (220 mm)
Line Entry L - 4 3/16 in. (106 mm)
Line Size - 5/16 - 5/8 in. (8 - 16 mm)
Weight - 50.7 lbs. (23 kg)
Max Deck Thickness K - 2 11/16 in. (68 mm)
Motor Depth J - 9 11/16 in. (246 mm)
Gear Width N - 5 1/8 in. (130 mm)
Based on the unique Modular Power System™, ANDERSEN Hydraulic Winches™ create a solid foundation for distributing power throughout your boat. Smooth running and reliable performance are not the only advantages – design and versatility are equally important aspects of all products. Single-speed or 2-speed Hydraulic winches
— your choice when using an ANDERSEN Winch model 52ST and up. Combining the winches with the Modular Power System and Power Packs© provides all the power you need.
Modular Power System™
Evolution through Development
The Modular Power System™ is engineered with a focus on flexibility and simplicity. The flexibility makes it possible to choose and implement a motor-powered unit at a convenient time, since all ANDERSEN Self-Tailing Winches™ (28ST and above) are factory prepared for future change. Simplicity means very easy installation of your chosen powered unit. *Please note that the 28ST and 40ST models are also available in the COMPACT and 2+1 SE versions. For further information please contact your local ANDERSEN Distributor regarding the MPS for the COMPACT Above Deck™ version.
The modular design of this system also shows in the fact that a single-speed electric powered unit can be replaced with a 2-speed electric or hydraulic unit — simply by removing the center nut and mounting a new unit. No new holes are required.
Hydraulic Conversion Kits™
The hydraulic conversion kits can be fitted to ANDERSEN Winches size 46ST to 110ST FS. The hydraulic kits are delivered mounted on the connection plate, complete with a hydraulic motor and installation manual.
Mini and Midi Power Packs
ANDERSEN Power Packs form an integral part of a modular system that can grow with your needs. They are designed to be fully flexible and can fit custom tanks or any suitable available space — with the option of adding enginedriven pumps to the system. A full and flexible system open to later additions and services.
Larger yachts over 60 ft. are built to the customer’s individual specifications, and careful consideration of design aspects is necessary to satisfy the particular hydraulic needs of individual owners. Our hydraulic team is headed by one of the most experienced super-yacht hydraulic systems design teams. We are pleased to discuss with the owner, designer and builder the full requirements of a particular project, and convert this information into a workable system with all necessary redundancy and technical back-up.
