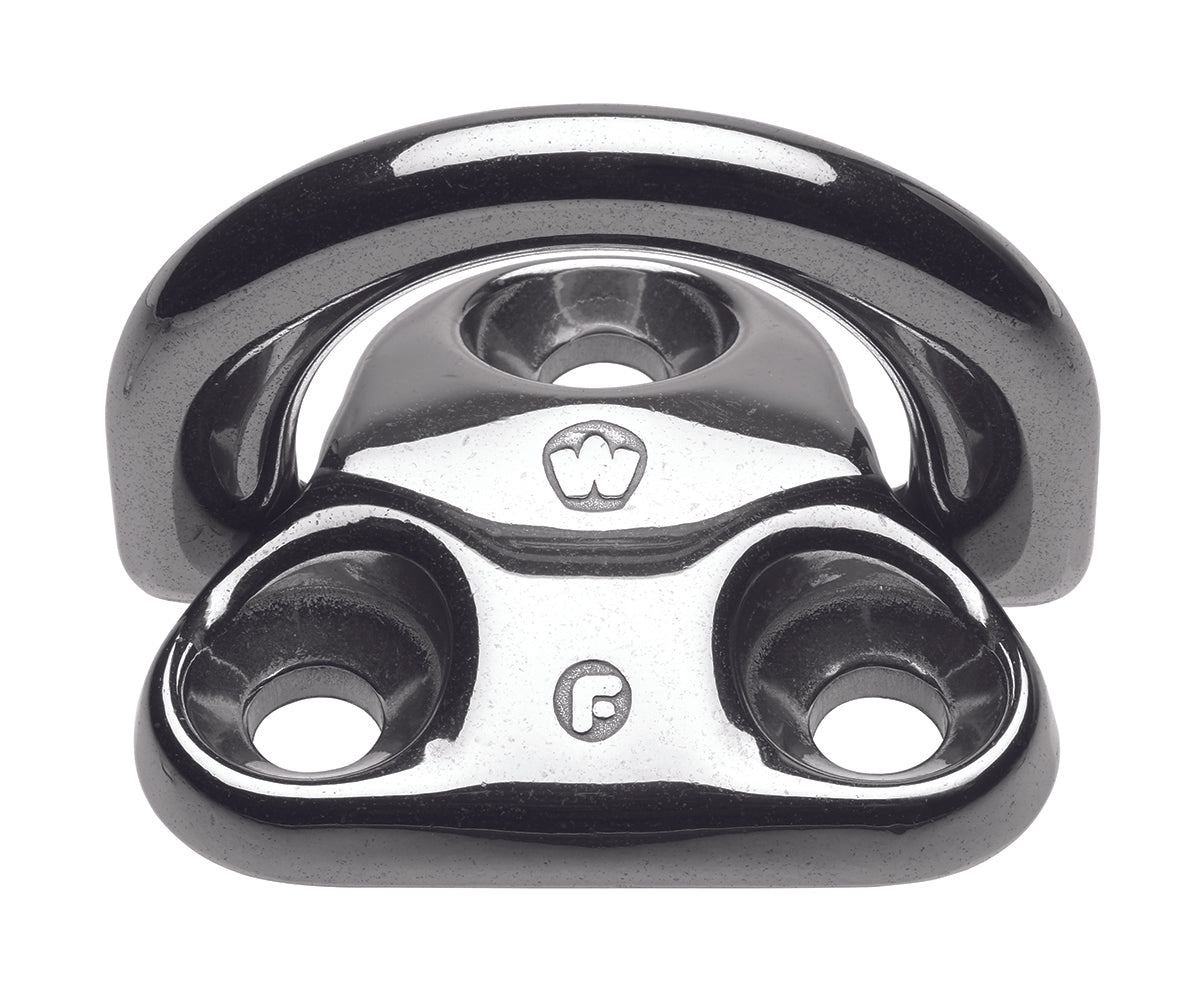

Wichard 13/32" (10mm) Folding Padeye (New)

Wichard 13/32" (10mm) Folding Padeye (New)

Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether etc...)

Fully dropforged product with outstanding working and breaking loads regardless the angle of the load

Modern and optimized design to suit aesthetics of modern boats

They can be fold down to minimize the risk of injuries

The silicon pad eliminates noise and unpleasant vibrations

Modern design

Features

Weight - 12.5 oz. (355 g)

Working Load - 9000 Lbs (4080 kg)

Breaking Load - 19840 Lbs (9000 kg)

A - 2 61/64" (75 mm)

B - 1 49/64" (45 mm)

C - 63/64" (25 mm)

D - 3 5/32" (80 mm)

E - 2 43/64" (68 mm)

F - 1 49/64" (45 mm)

Diameter d - 25/64" (10 mm)

Diameter D - 25/64" (10 mm)

Applications

For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point etc…)

Material

Grade 316L Stainless Steel

HR stainless steel 17.4 PH
