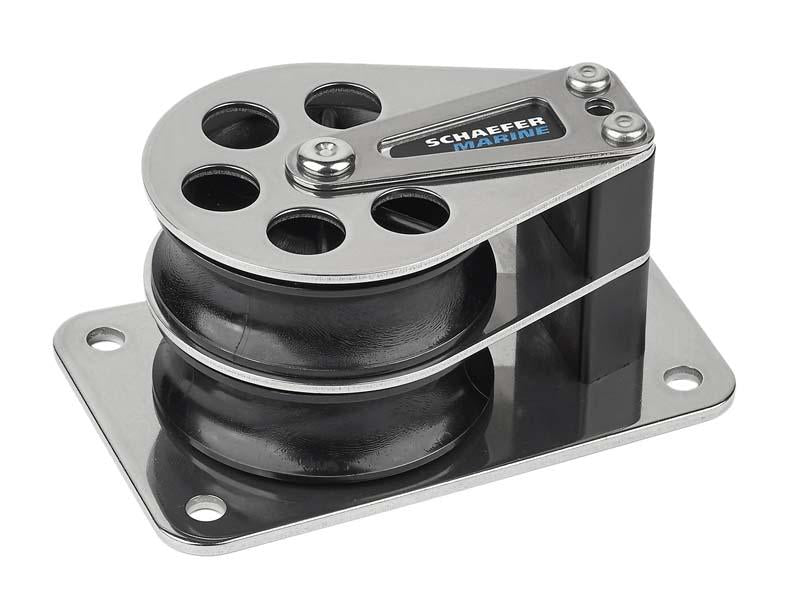

Schaefer Flat Base SS Double Cheek Block

Item #

705-28

Usually ships within 1-3 days

Product Description

Schaefer Flast Base/Dbl/Delrin

7 Series Cheek Block with Stainless Steel cheeks. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Length: 4 3/8 in. (111 mm)

  • Width: 2 3/4 in. (70 mm)

  • Height: 1 29/32 in. (48 mm)

  • Fasteners: (4) 1/4 in. RH (6 mm)

  • C/C: 3 5/8 in. (98 mm)

  • SWL: 2250 lbs (1020 kg)

  • Top Sheave SWL: 500 lbs (227 kg)

  • Weight Stain.: 15.9 oz (447 g)

  • Max Line: 1/2 in. (13 mm)
