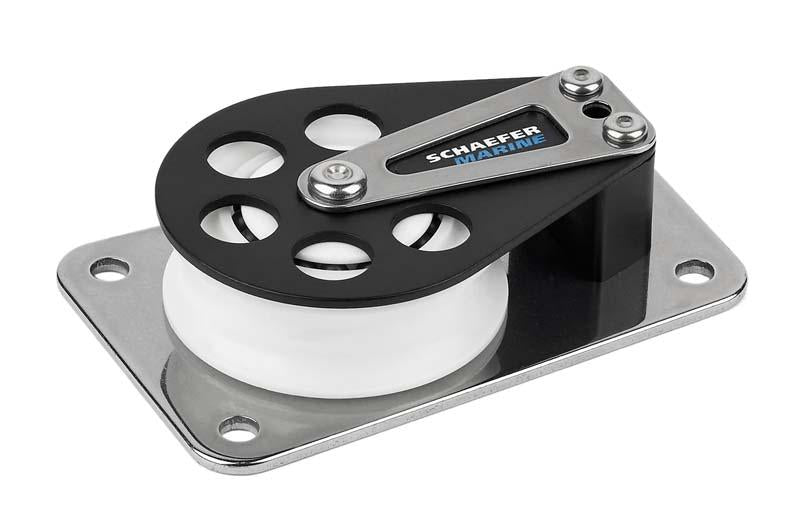

Schaefer Flat Base Delrin Single Cheek Block

Schaefer Flat Base Delrin Single Cheek Block

$122.62 USD
$170.30 USD $122.62 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Schaefer Flat Base Delrin Single Cheek Block

7 Series Cheek Block with anodized Aluminum cheek and ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Length: 4 3/8 in. (111 mm)

  • Width: 2 3/4 in. (70 mm)

  • Height: 1 in. (25 mm)

  • Fasteners: (4) 1/4 in. RH (6 mm)

  • C/C: 3 5/8 in. (92 mm)

  • SWL: 1700 lbs. (771 kg)

  • Weight Alum: 9.6 oz (272 g)

  • Max Line: 1/2 in. (13 mm)
