Product Description
Lewmar Size 50 Flat Base Ocean Hatch
All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications

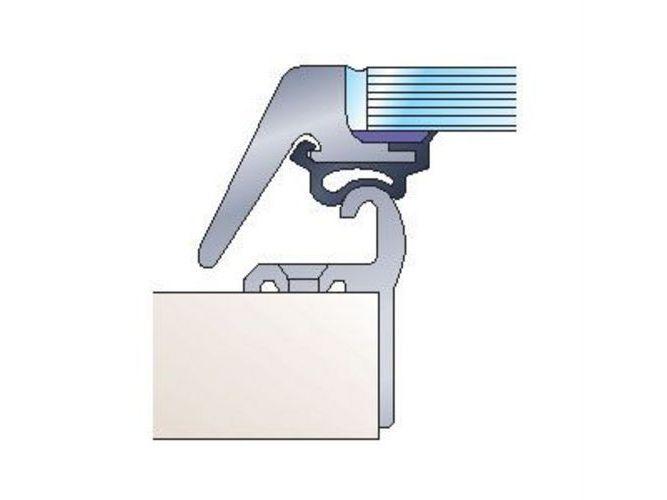

Lower Frame (in) - Flat Base
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 16.1
Acrylic Window Thickness (in) - 1/2
Dimensions
Length X (in) - 17 1/2
Width Y (in) - 22 5/8
Height Z (in) - 1 11/16
Radii R (in) - 3
Hinge Length HX (in) - 3/16
Hinge Width HY (in) - 14 7/16
Cut-Out Length (Flat/Flange) X1 (in) - 14 5/8
Cut-Out Width (Flat/Flange) Y1 (in) - 19 3/4
Cut-Out Radii (Flat/Flange) R1 (in) - 1 9/16
