Product Description

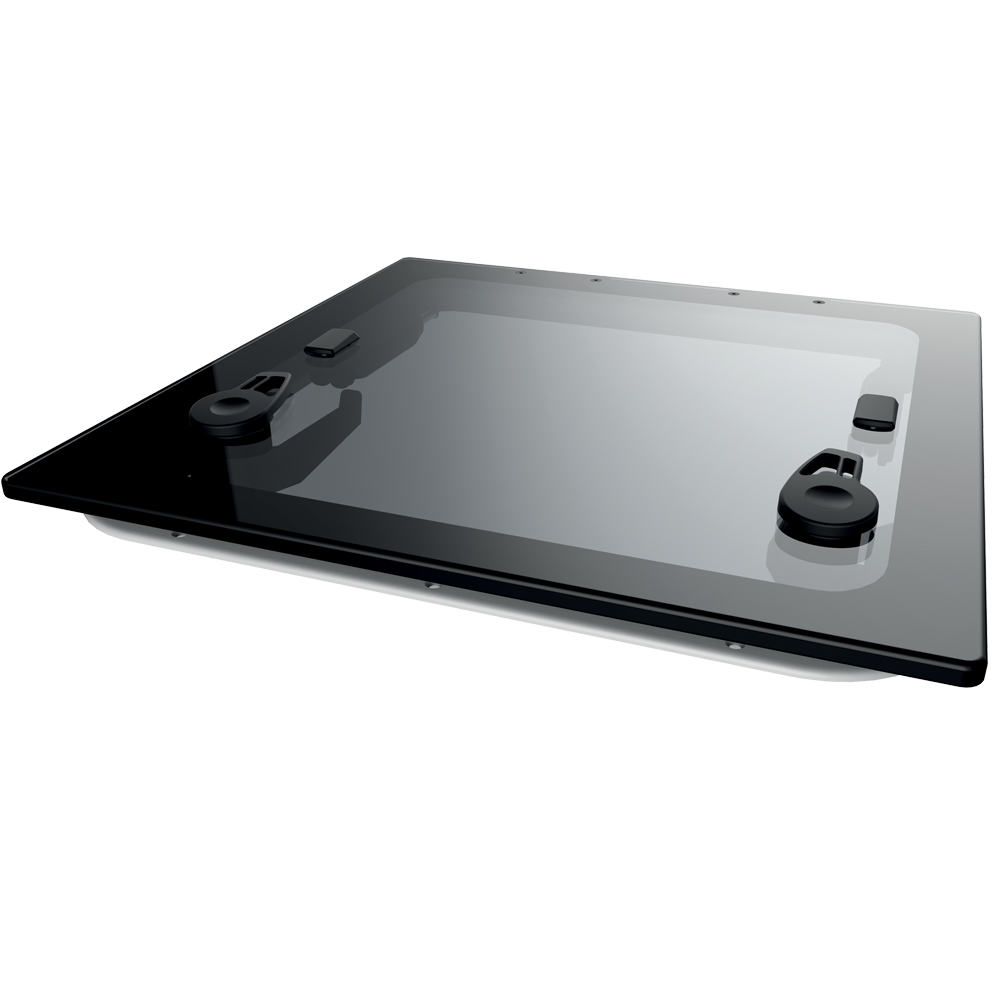

Lewmar Size 44 Flush Mount Hatch (Grey Acrylic)
Opening on the flush hatch is restricted to around 90 degrees. The hatch is only supplied with Power Boat stay(s).
Standard Color Specifications:
Grey acrylic, white lower frame
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6/ 1/4"). Fastening size for lower frame use 5mm CSK screw No. 10 UNC 2 BA
All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).
Specifications
Support System - 2 x Stay
Lower Frame (in) - 9/16
Acrylic Window Thickness (in) - 1/2
Dimensions
Length X (in) - 20 3/16
Width Y (in) - 20 3/16
Height Z (in) - 1 1/4
Radii R (in) - 3/8
Cut-Out Length X1 (in) - 17 3/8
Cut-Out Width Y1 (in) - 17 3/8
Cut-Out Radii R1 (in) - 1 11/16
